The design of the porcelain tile roof bracket system has great flexibility. It is suitable for installing framed and frameless components to sloped roof systems.
Brand Name :
Sail SolarInstallation Site :
Tile RoofAvailable Panel :
Frame or Frameless Solar PanelMain Material :
AL6005-T5/SUS304Fixed Parts Material :
SUS304Max Wind Load :
45M/SMax Snow Load :
1KN/M2Warranty/ Duration :
12 years/ More than 25 yearsDesign Standards :
AS/NZS 1170 &JIS C 8955-2011

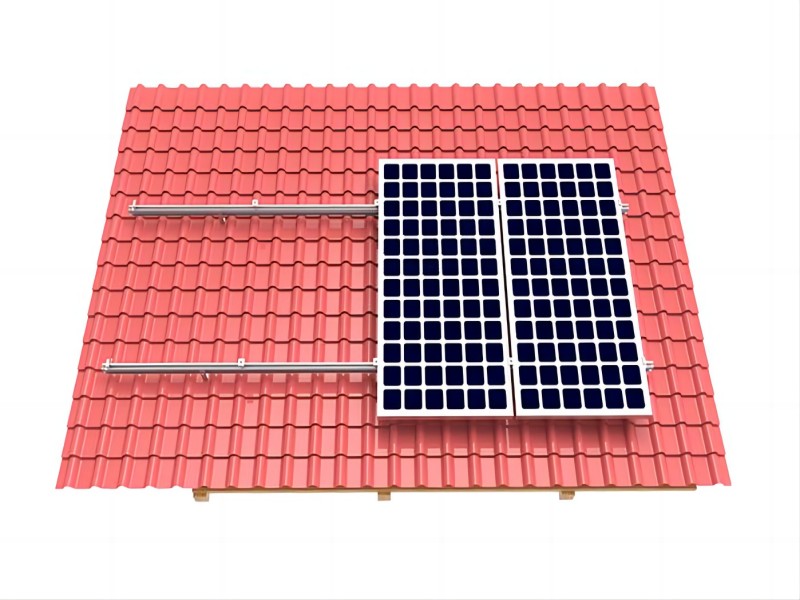

Tile Roof Mounting Structure
Features:
> Compatible with all types of photovoltaic solar panels;
> A variety of roof hooks are suitable for different tile roofs, such as ceramic tiles, Spanish tiles, flat tiles, slate tiles and glazed tiles;
>Custom-designed tile hooks according to specific tile specifications;
> Made of SUS 304 stainless steel;
> The installation process is simple and fast;
> No need to drill holes in the tiles;
> Slotted for easy adjustment;
> Provide 10-year warranty.
The components of tile roof solar panel mounting brackets typically include:

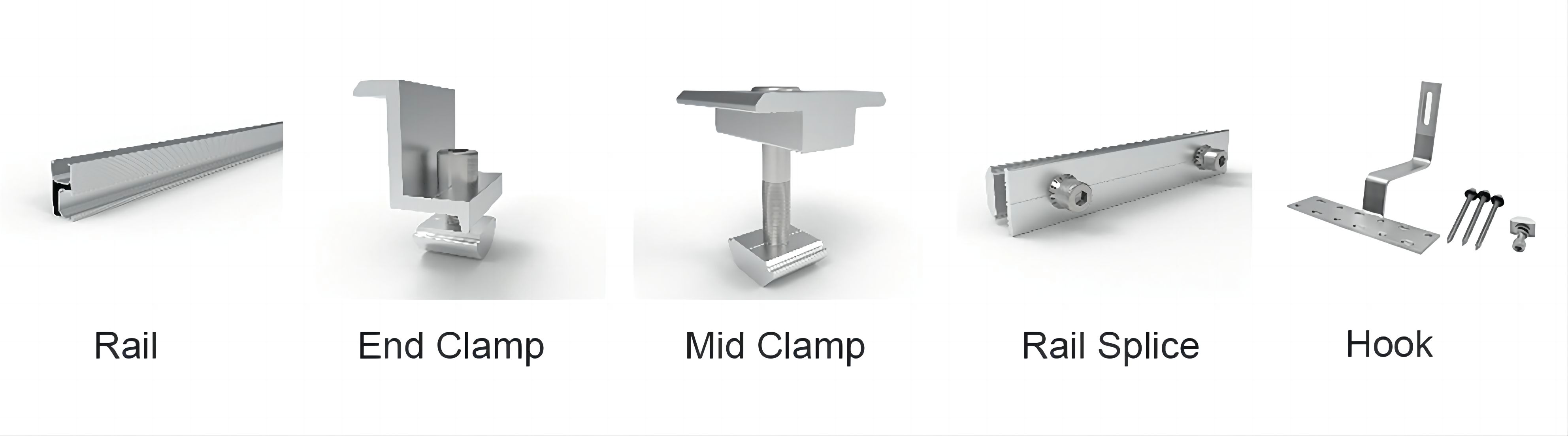

--Mounting Rails: These are horizontal metal rails that provide a stable base for mounting the solar panels. They are usually made of aluminum or stainless steel and designed to withstand various weather conditions.

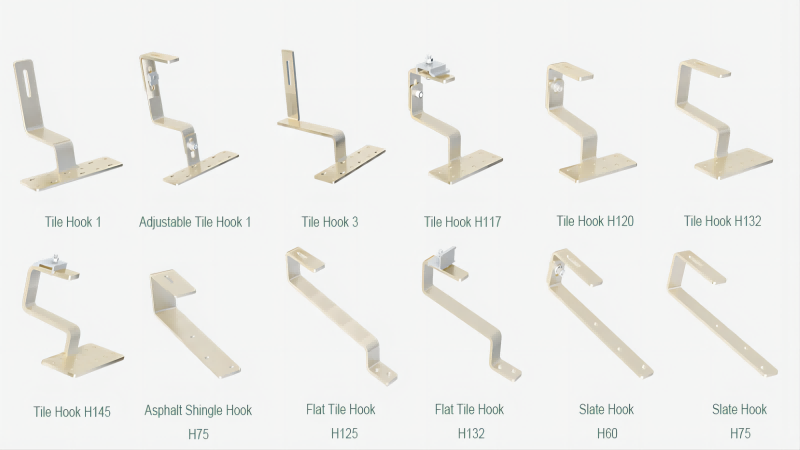

--Tile Hooks/Brackets: These are specialized hooks or brackets that attach to the roof's structural elements underneath the tiles. They are available in different designs to accommodate different tile profiles. Tile hooks are typically made of stainless steel or aluminum, and they are adjustable to fit the specific tile shape and size.
--Flashing: Flashing is a waterproofing material that is installed around the tile hooks to prevent water from seeping into the roof. It is typically made of rubber or a similar flexible material and is customized to fit the specific tile profile.
--Clamps: Clamps are used to secure the solar panels onto the mounting rails. They come in various sizes to accommodate different panel dimensions. The clamps are usually made of aluminum or stainless steel and are designed to resist corrosion.
--End Clamps and Mid Clamps: End clamps are used to secure the panels on the outer edges, while mid clamps hold the panels in place along their lengths. These clamps ensure that the panels remain firmly attached to the mounting rails, providing structural stability.
Installation Details
You could choose the suitable one Hook according to your roof specs and your demands.

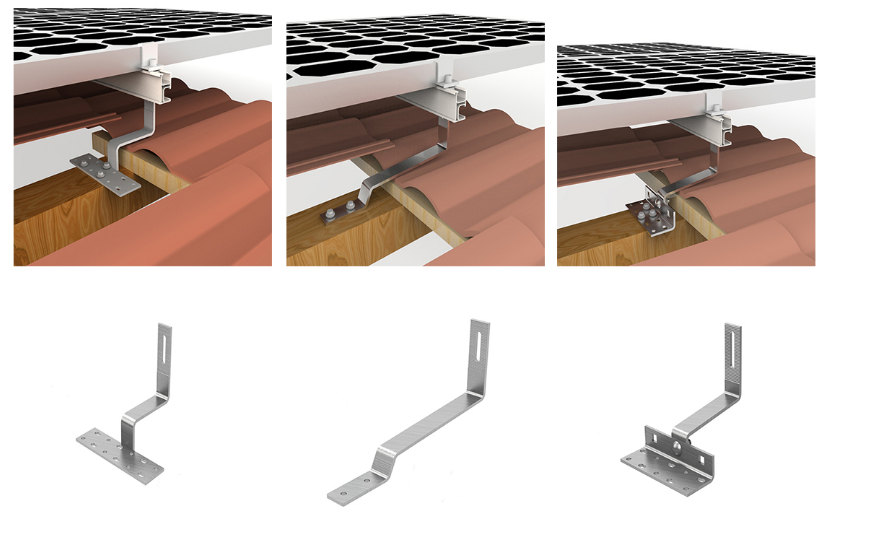

-The tile hooks or brackets are attached to the roof structure under the tiles, aligning them with the planned panel layout
-Flashing is installed around the tile hooks, carefully fitted to the profile of the tiles to maintain a watertight seal.
-The mounting rails are attached to the tile hooks, providing a stable foundation for the solar panels. They are aligned and secured according to the predetermined design.
- The solar panels are mounted onto the rails using clamps. End clamps secure the panels on the outer edges, while mid clamps hold them in place along their lengths.
