Deye GE-F60 All in One ESS C&I Use 60kwh Lithium Battery Cabinet Solar Energy Sorage System Outdoor 51.2V 100AH

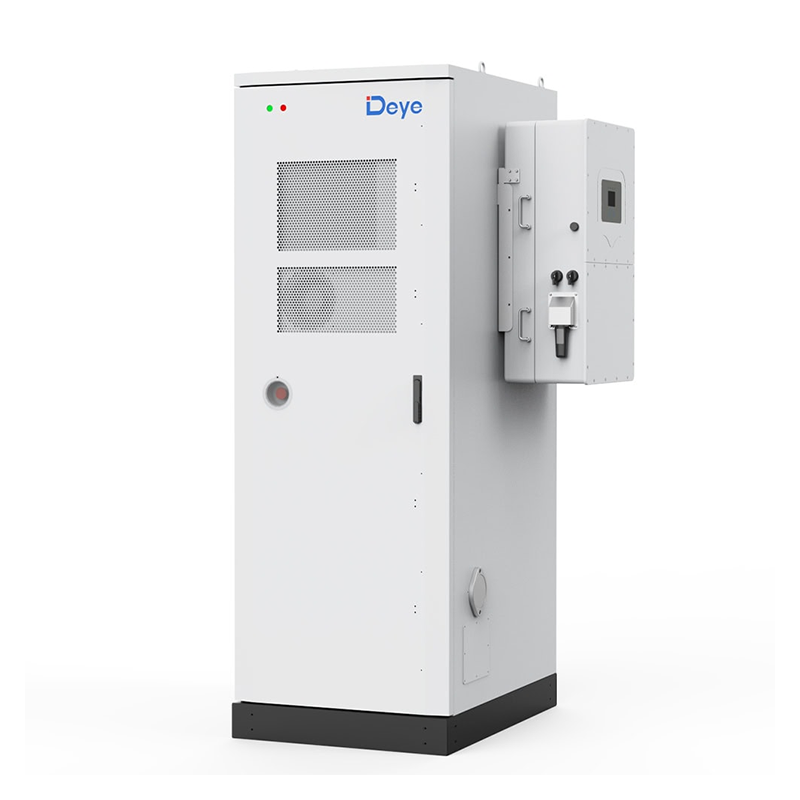

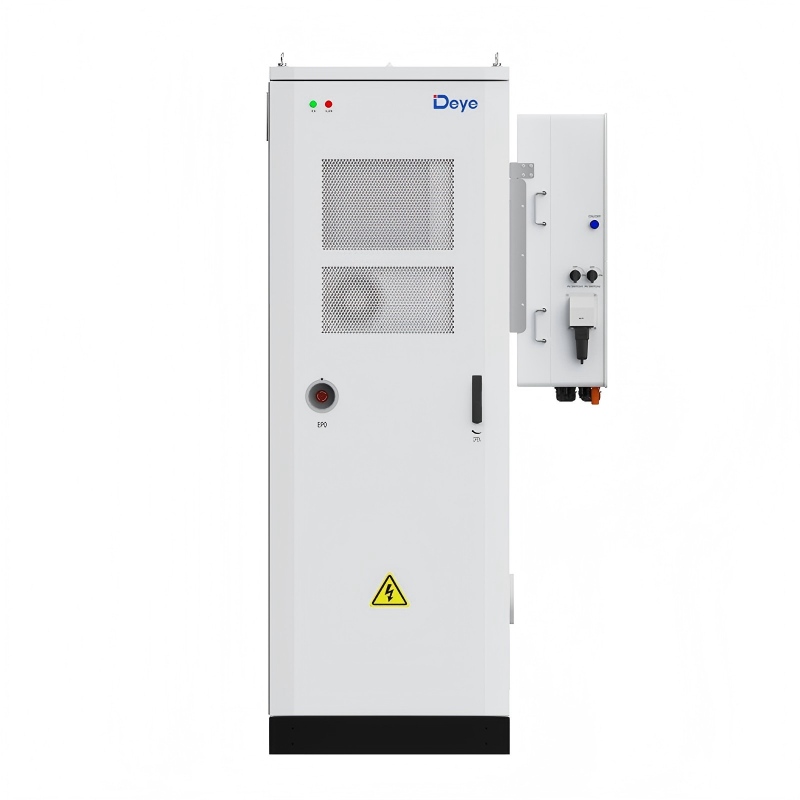

Deye GE-F60 is a high-performance all-in-one energy storage solution designed by Deye. It consists of 12pcs of lithium iron phosphate (LFP) battery modules, each rated at 5.12kWh (100Ah), delivering a total usable capacity of 61.44kWh.This system seamlessly integrates a Battery Management System (BMS), an Energy Management System (EMS), and a hybrid inverter into a single unit. It supports black start and stable off-grid operation, making it a versatile solution for various applications, including commercial & industrial (C&I) projects and large residential homes.

  • Brand Name :

    Deye
  • Model Number :

    Deye GE-F60
  • Power Range :

    60-360KWH
  • Grid Type :

    Hybrid/Off-grid
  • Number of Cycles :

    6000
  • Battery Type :

    LiFePO4
  • Operation Temperature :

    -40-60℃
  • Cooling :

    Air cooling
  • Dimensions (W*D*H) :

    783×1059×2235 mm
  • Protection degree :

    IP55

The system operates over a wide voltage range from 480 to 700 V, with a nominal voltage of 614.4 V. Recommended charge/discharge current is 50 A, nominal current is 100 A, and peak current reaches 125 A. Integrated electronics include an EMS, a hybrid inverter, and a BMS, which work together to optimize performance and ensure operational safety. The system is scalable and can be expanded up to 360 kWh for larger installations.

For active safety, it is equipped with aerosol fire suppression, along with combustible gas, smoke, and temperature detection, supported by active exhaust and an alarm. The rugged enclosure is rated IP55, providing protection against dust and water ingress.

--------------占位---------------

High usable capacity: 61.44 kWh total / 55.29 kWh usable

Modular Design:

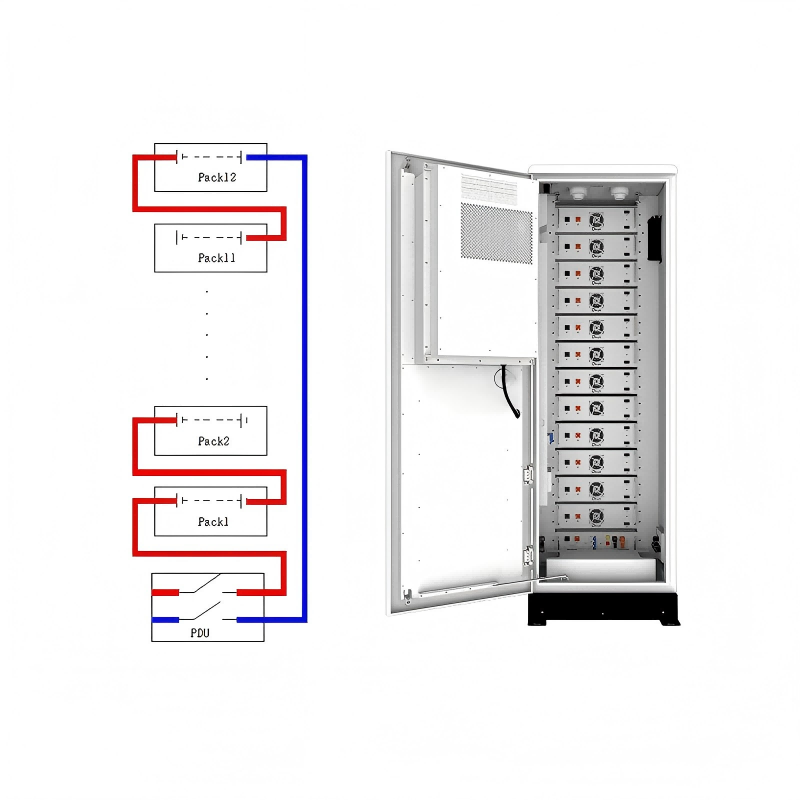

12 battery modules connected in series
Each module rated at 5.12 kWh / 100 Ah

Electrical Characteristics:
Voltage range: 480–700 V (614.4 V nominal)
Charge/discharge current: 50 A (recommended), 100 A (nominal), 125 A (peak)

Integrated Intelligence:

Built-in EMS, hybrid inverter, and BMS to optimize performance and ensure safety

Scalability: expandable up to 360 kWh for larger-scale installations

Active Safety Features: Aerosol fire suppression, Detection of combustible gas, smoke, and temperature, Active exhaust system with alarm

Enclosure Protection: IP55-rated for protection against dust and water

--------------占位---------------

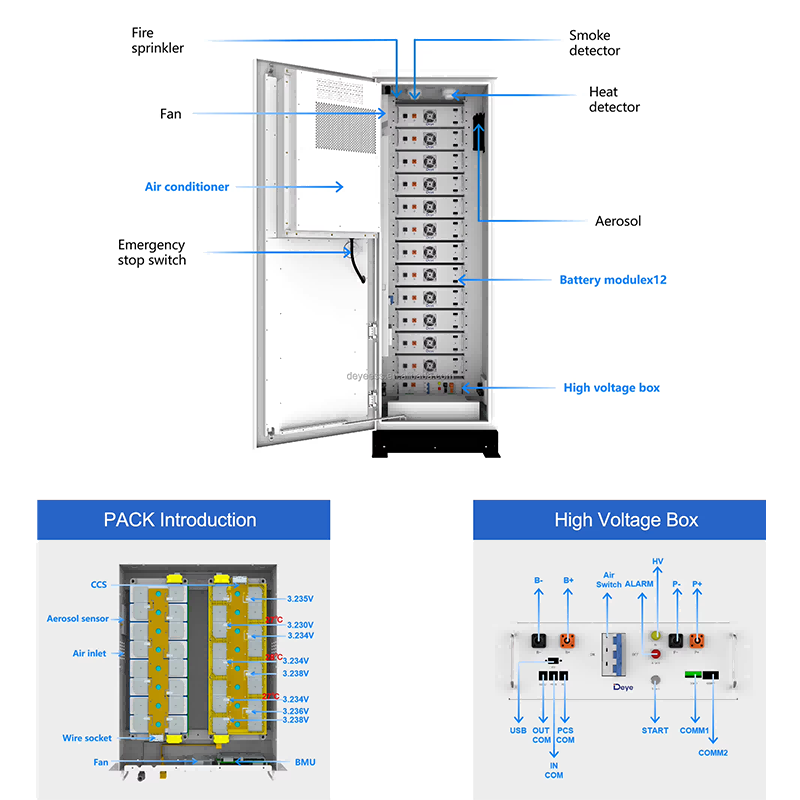

Fire sprinkler: Fire suppression and cooling.

Air conditioner/Fan: Cooling the BESS.

Aerosol: When the BESS is detected to be on fire, aerosol is emitted to extinguish the fire.

Smoke detector:A device used to detect smoke in a fire and sound n alarm when smoke is detected.

Heat detector:A deviceused to measure and sound an alarm if it detects excessive temperature.

Emergency stop swich: allows immediate system shutdown in critical situations to protect technicians and respond to emergencies.

Battery Module: LiFePO4 (LFP), 51.2V 100AH, provides electrical energy storagy and output.

High Voltage Box: serves as a centralized enclosure for high-voltage components, provides electrical isolation, circuit protection, and safe distribution of high-voltage power within the system.


--------------占位---------------
