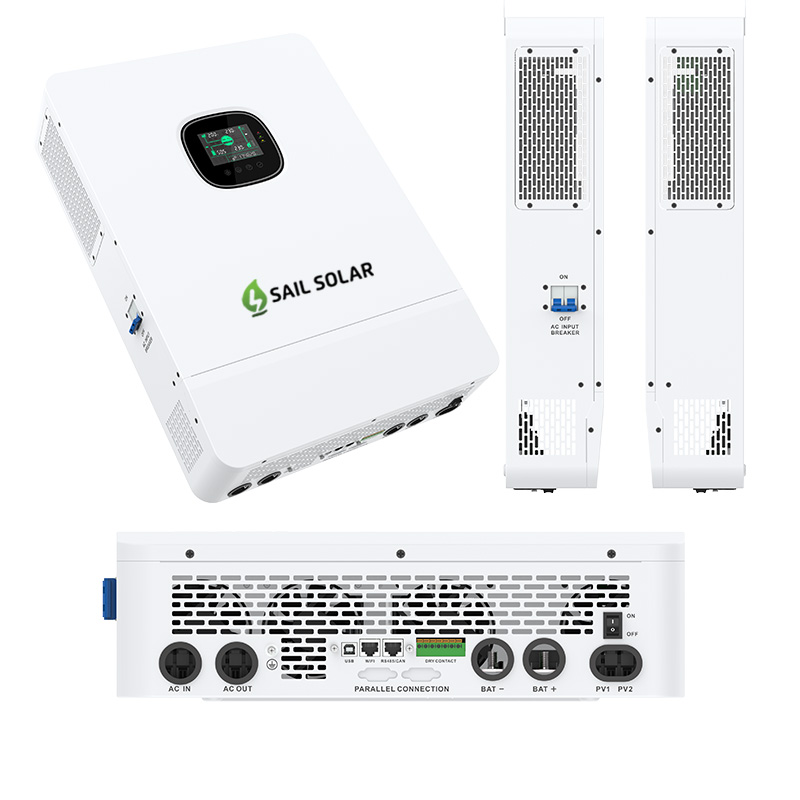

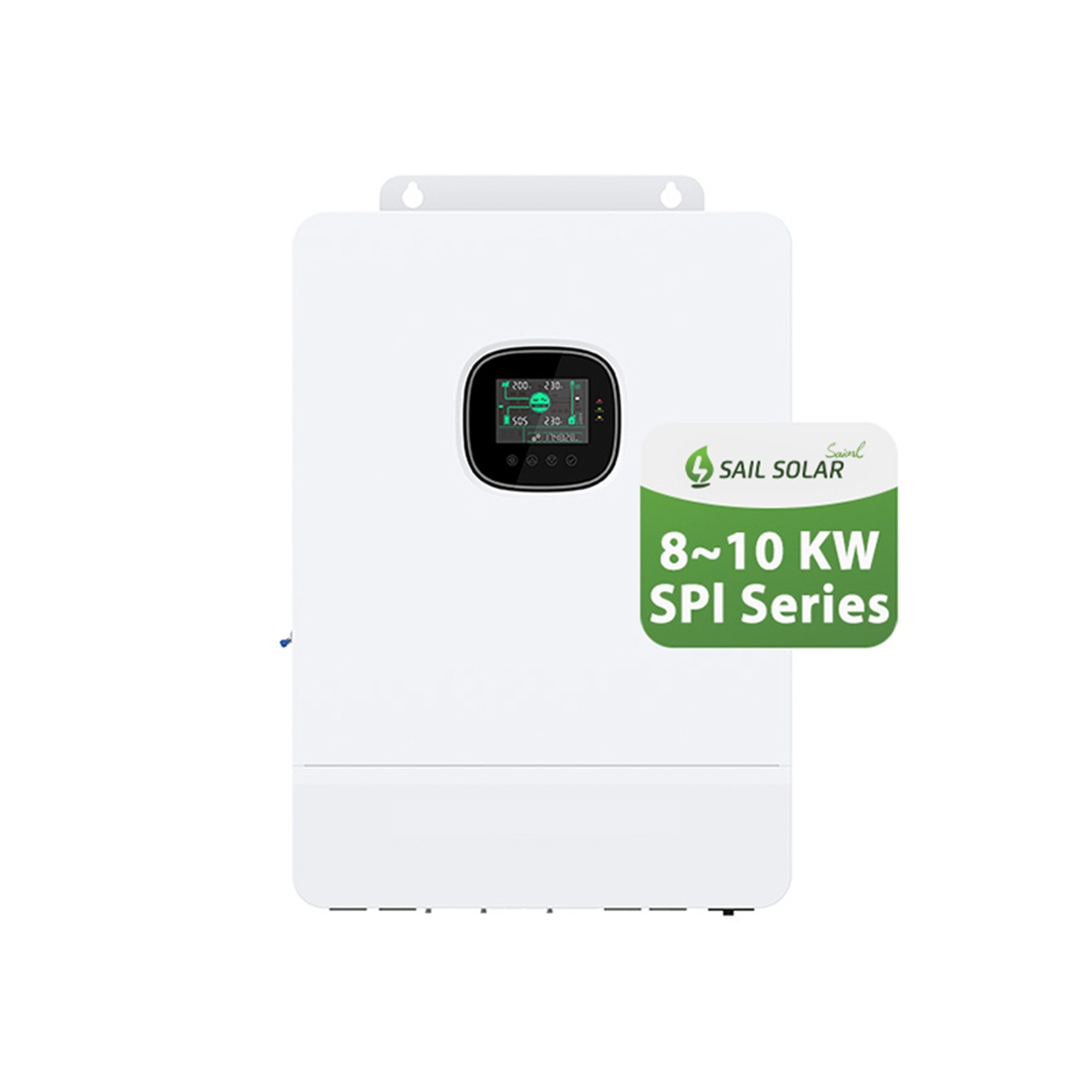

Sail Solar Residential Off Grid SPI Series 10KW Single Phase Inverter SPI-10K-SP

Elevate your residential solar setup with Sail Solar inverters, offering both off-grid and hybrid models. Trust in Sail Solar for seamless power conversion in your home’s solar system.

  • Brand Name :

    Sail Solar
  • Operating temperature :

    –0 °C ~+55 °C
  • Warranty :

    5 years(10 years is Optional)
  • Parallel Capability :

    Yes, 6 units maximum
  • Output Frequency :

    50Hz/60Hz
  • Size: :

    620/445/130mm
  • Protection degree :

    IP20
  • Module ID :

    SPI-10K-SP
  • Type of Battery :

    Lithium /Lead-acid(48V)
  • Output Voltage :

    220V or 380V

Introduction:



SPI series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.



The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.



Product Features:



-Supports lead acid battery and li-ion battery connections.

-With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply.

-access can trigger the activation of the li-ion battery.

-Single-phase pure sine wave output.

-It has charging and discharging time sharing setting function.

-Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

-Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

-4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

Product Usage:



-Energy saving mode function to reduce no-load energy losses.

-With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

-LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

-360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

-Support CAN, USB, and RS485 communication.

-Off grid/On grid connected all-in-one machine.
