Brand Name :
SAIL SOLARProduct Model :
2VCapacity Range :
2V 400Ah-3000AhDesign Life :
15 years for 12V (25℃)Efficiency :
≥98%Number of Cycles :
3000+timesOperation Temperature :
-40℃~60℃Terminal Type :

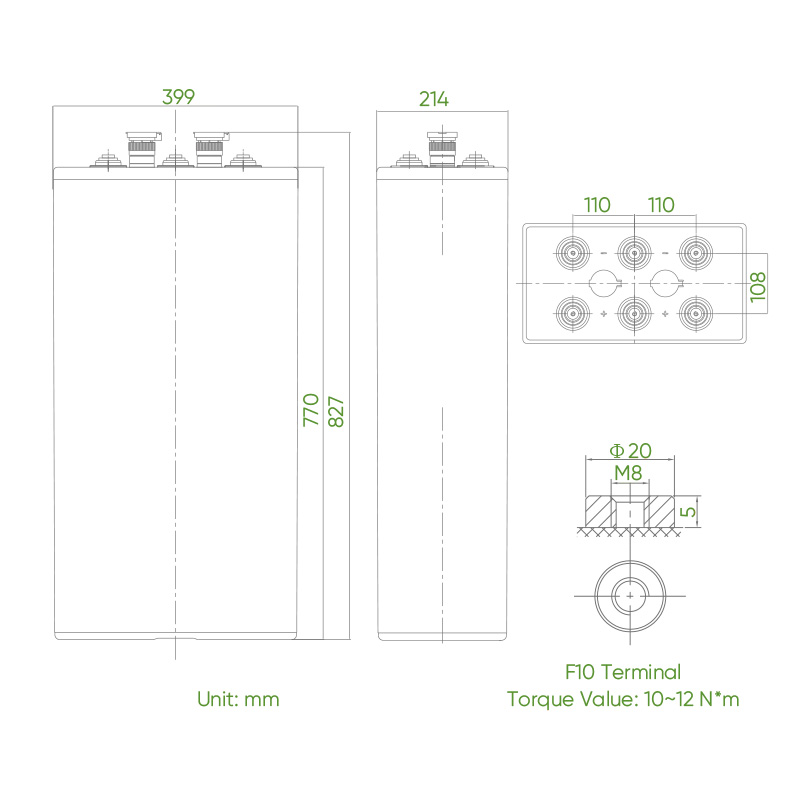

F10(M8)Self Discharge Rate :
≤3% per monthCertificates :
CE/ IEC60829-21/22-2004/ IEC61427-2005/ISO9001/ISO14001/OHSAS18001Application :
UPS/EPS systems Solar energy system/Wind Energy System Renewable Energy Systems Energy storage projectsColor&OEM :
White or Black is optional, can be customized. Support OEM
OPZS Technology
OPZS is our range of tubular flooded OPZS batteries, which are built with tubular flooded lead acid technology and robust construction. Which is the best choice in an extremely harsh environment. The OPZS battery has a long design life. Resist frequent impact, excellent discharge performance, and less maintenance, etc.
The scientific name of OPZS storage battery is Flooded Tubular Deep Cycle Valve Regulated Lead Acid Battery.OPzS battery is the abbreviation of German Ortsfeste Panzerplatten S-SCHILLERGLANZ (rich liquid). The three words mean fixed type, tubular plate and sealed OPZS battery. Combined, it refers to the 2V series batteries in which the positive plate produced by the German standard is a tubular type, the negative plate is pasted on the grid, and the electrolyte is a colloidal electrolyte.Fields of application of OPZS batteries: nuclear power plants, various communication equipment, railway systems, UPS systems, solar and wind energy systemsThe separator is porous rubber and PVC, the electrolyte is flooded, and the battery case is made of transparent AS shell.
OPZS Characteristic
OPZS battery is suitable for harsh environments, like outdoor high temperatures, frequent power outages, strong impact discharge, power grid fluctuation, etc, and applied in an energy storage system with a complex electric environment too, can provide the longest service life security the battery to users.
-Design life of OPZS tubular battery: the design float life of this type of battery is more than 20-22 years; 80%DOD cycle life is more than 1600 times
-The main components of the positive plate of OPZS tubular battery: the positive plate is mainly composed of 3 parts, the grid, the casing and the active material. The shape of the pole plate is a tubular pole plate.
-The main components of the negative plate of OPZS tubular battery: the negative plate mainly consists of 2 parts, the grid and the active material. The shape of the plate is a flat plate
-Electrolyte of OPZS tubular battery: the main component of the electrolyte is dilute sulfuric acid
-Terminals of OPZS tubular batteries: Copper terminals are usually used to enhance conductivity. Some manufacturers can also use lead terminals or lead-plated terminals
-Exhaust valve of OPZS tubular battery: Because of the flooded design, this type of battery has an exhaust valve. The exhaust valve also has the function of adding liquid during maintenance
OPZS Application
-UPS/EPS systems
-Solar energy system/Wind Energy System
-Renewable Energy Systems
-Energy storage projects
-Telecom Systems
-Electric Utilities
-Boat
-Date center
-etc.
Certification
