This is a common solar grid-connected power station solution, which can not only supply power to the load, but also sell the power to make a profit.
Brand Name :
SAIL SOLARSystem Power :
1000KWSystem Type :
On-Grid/ Grid-TiedApplicable Voltage :
EU/US VersionSolar Panel Type :
Mono-crystallineInstallation Type :
Roof/Ground/Water SurfaceCustomization :
AcceptablePre-sale Design :
AcceptableApplication :
Industrial and CommercialCertificate :
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM :
Acceptable
Power Sales Model
The inverter receives the direct current generated by the solar panel, converts it into alternating current, and directly inputs it into the public grid through the "CT smart meter".
At the end of the month, the two-way meter will calculate the bill based on the export and import of electricity. Thus, profits are obtained.
Note that the flow of electricity to the grid does not mean that the electricity produced by the system will not provide power to the load. In fact, it continues to supply power to the load in the form of flowing into the grid.
String Grid-Connected Inverter Parallel Scheme:
(1) Master-slave control strategy: that is, one inverter acts as the master inverter, responsible for controlling the frequency, phase and amplitude of the entire system, and other inverters act as slave inverters, following the output of the master inverter for adjustment.
(2) Peer control strategy: that is, all inverters have the same control authority, and load distribution and system stability are achieved through mutual consultation and coordination.
What is in SAIL SOLAR on grid system？

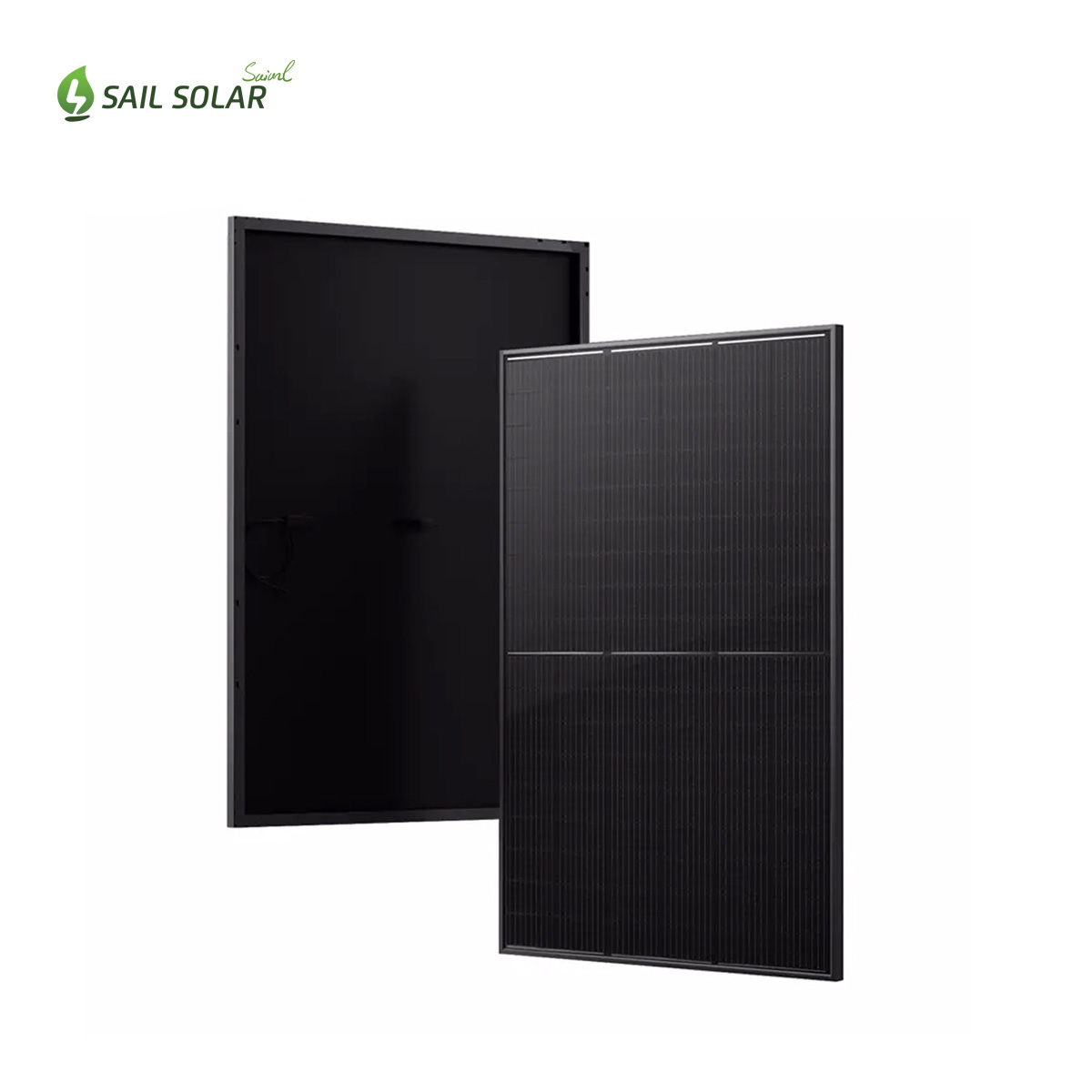

Solar Panel
Mono/Poly/Black etc all type solar panel, High Efficiency P/N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
Various On-Grid Inverter
> Smart diagnosis
> High efficiency up to 99%
> Local WIFI connection
> String monitoring
> AC&DC type II SPD
> AFCI protection optional
Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> IP65 Waterproof, applicable for outdoor PV systems
Mounting Rackets
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
