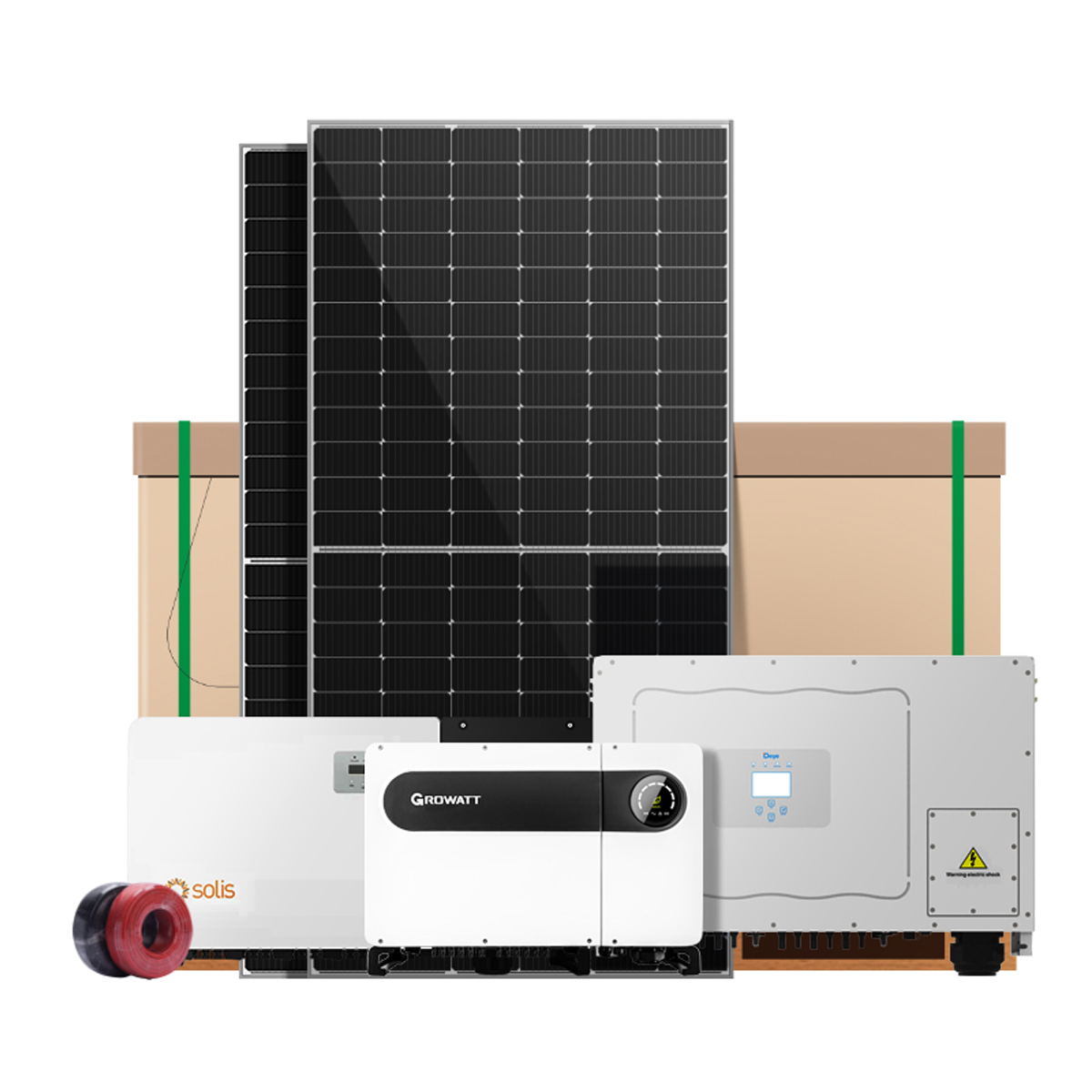

This is a common solar grid-connected power station solution, which can not only supply power to the load, but also sell the power to make a profit.
Brand Name :
SAIL SOLARSystem Power :
500KWSystem Type :
On-Grid/ Grid-TiedApplicable Voltage :
EU/US VersionSolar Panel Type :
Mono-crystallineInstallation Type :
Roof/Ground/Water SurfaceCustomization :
AcceptablePre-sale Design :
AcceptableApplication :
Industrial and CommercialCertificate :
CE/MCS/TUV/VDE/UL/CSA/ETL/CECOEM :
Acceptable
In Load Priority Mode:
The inverter receives the DC power generated by the solar panel and converts it into AC power for the load.
When the power generation is higher than the load consumption, the remaining power will flow to the grid, and the statistics of power sales will be completed through the monitoring of smart meters, thereby obtaining profits.
This is what we often call "load priority, surplus power is connected to the grid".

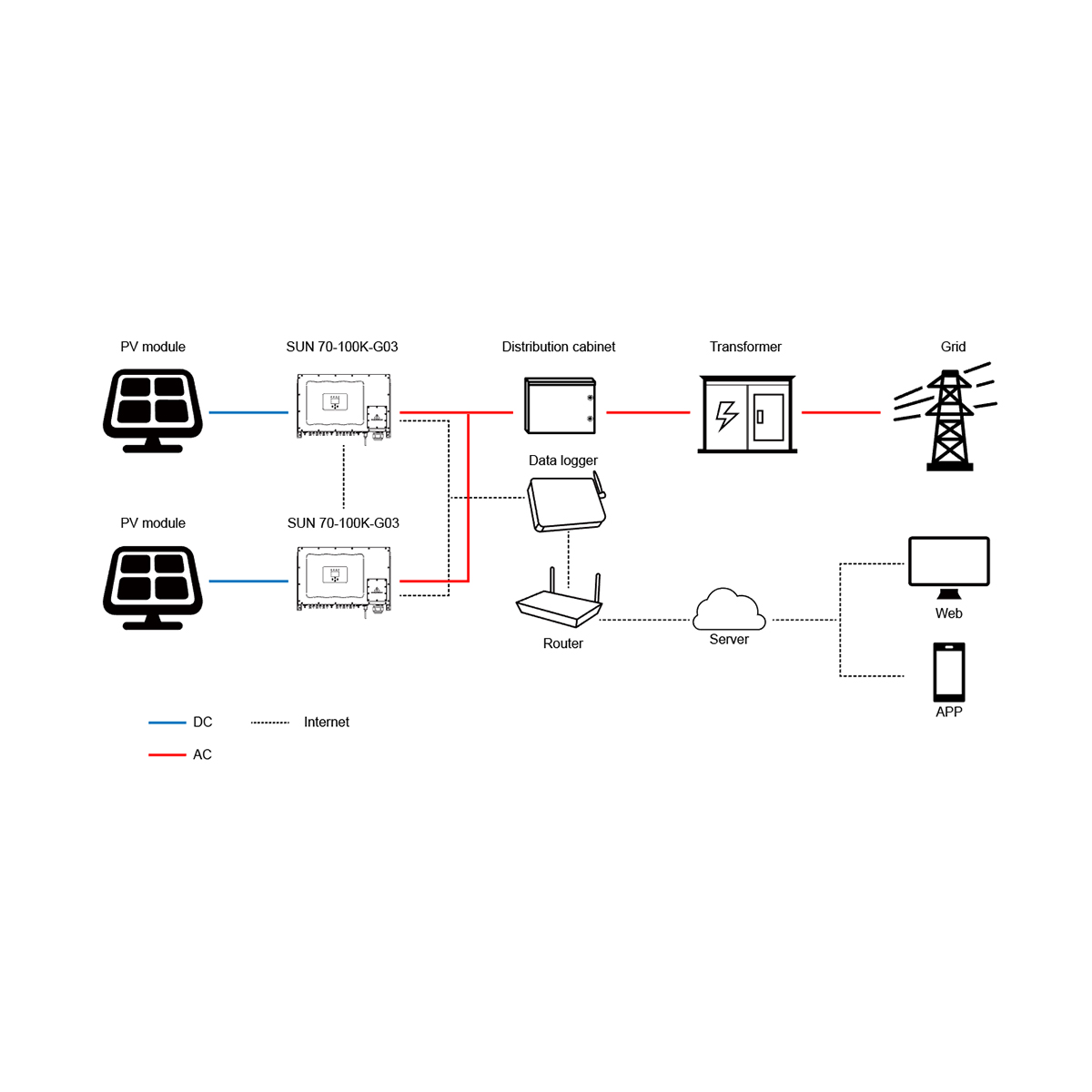

Connection Diagram:
In a grid-connected solar energy system, backflow prevention and smart meters are essential.
Usually, people will add the backflow prevention function to the smart meter, which is the product we currently have on the market called "CT smart meter". It can not only count the power value transmitted by the solar energy system to the grid, but also prevent the grid current from causing damage to the solar energy system when connected to the grid.
What is in SAIL SOLAR on grid system？

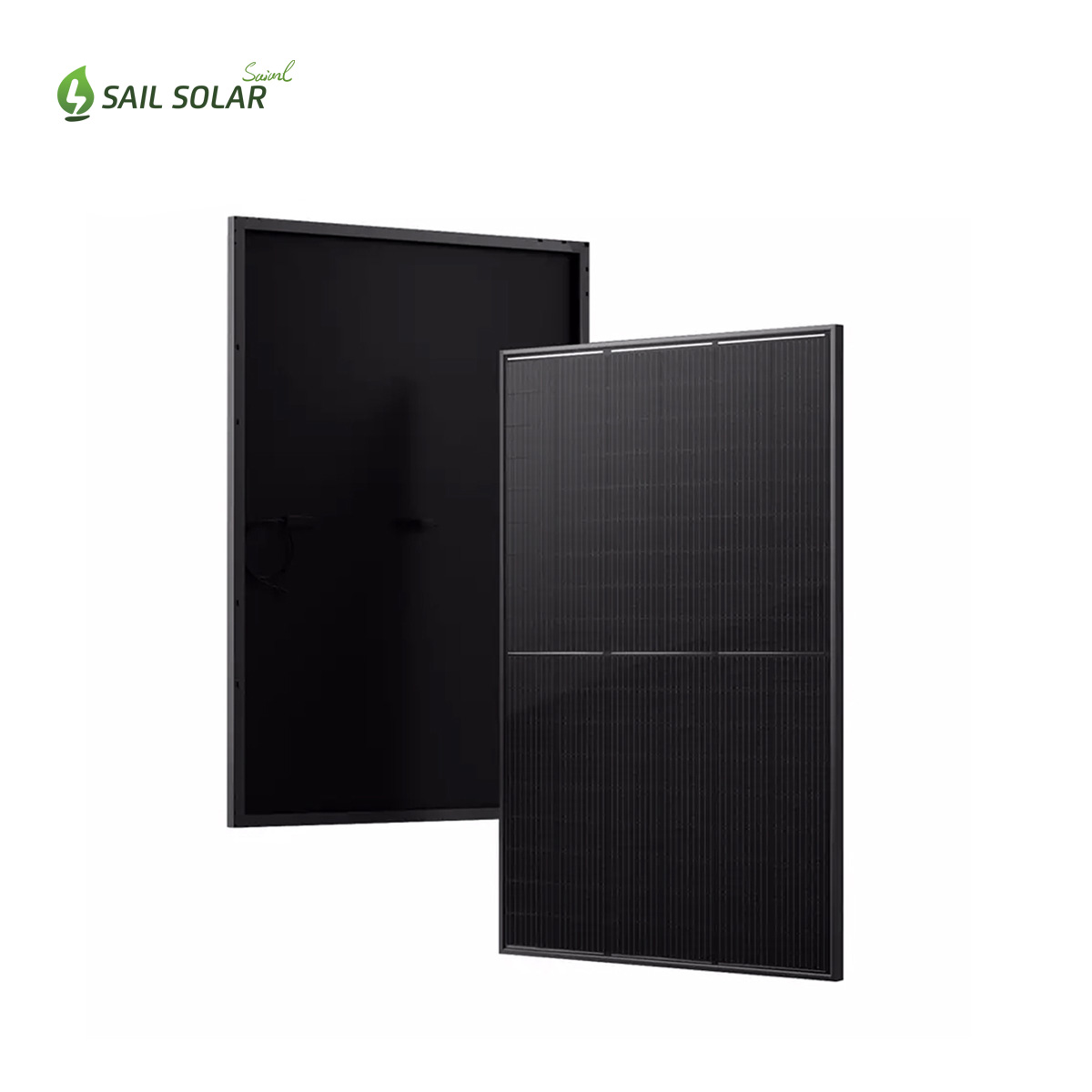

Solar Panel
Mono/Poly/Black etc all type solar panel, High Efficiency P/N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

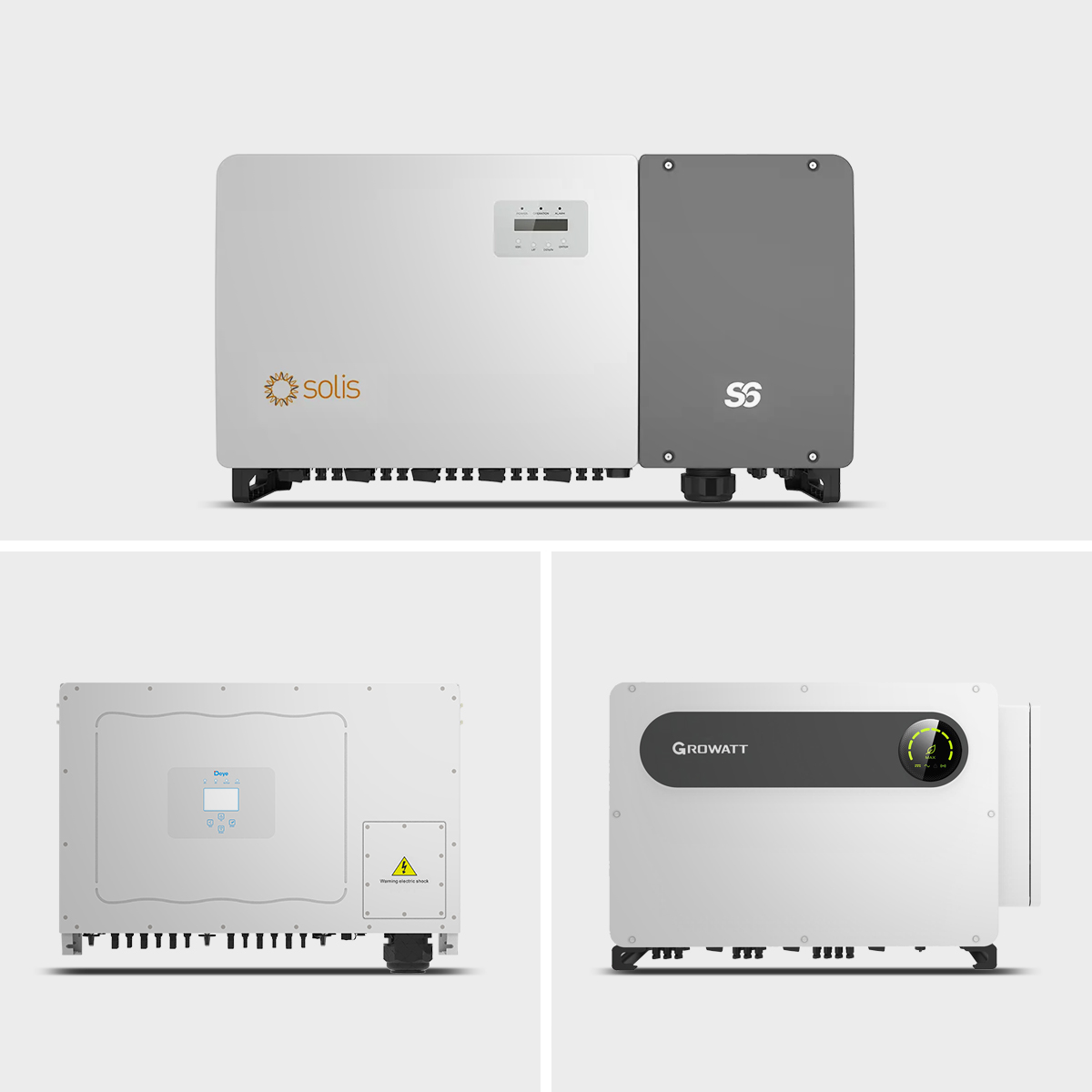

Various On-Grid Inverter
> Smart diagnosis
> High efficiency up to 99%
> Local WIFI connection
> String monitoring
> AC&DC type II SPD
> AFCI protection optional

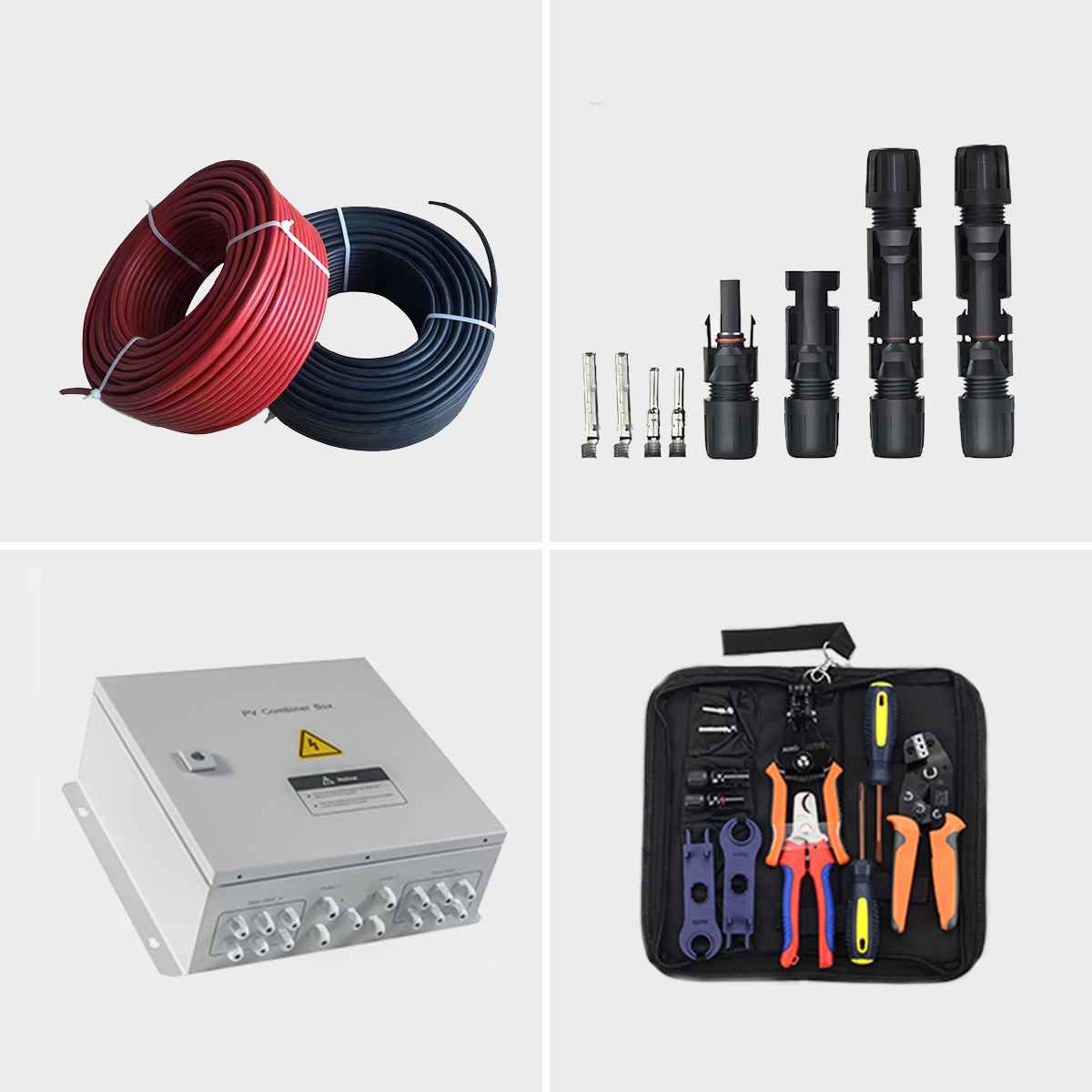

Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> IP65 Waterproof, applicable for outdoor PV systems

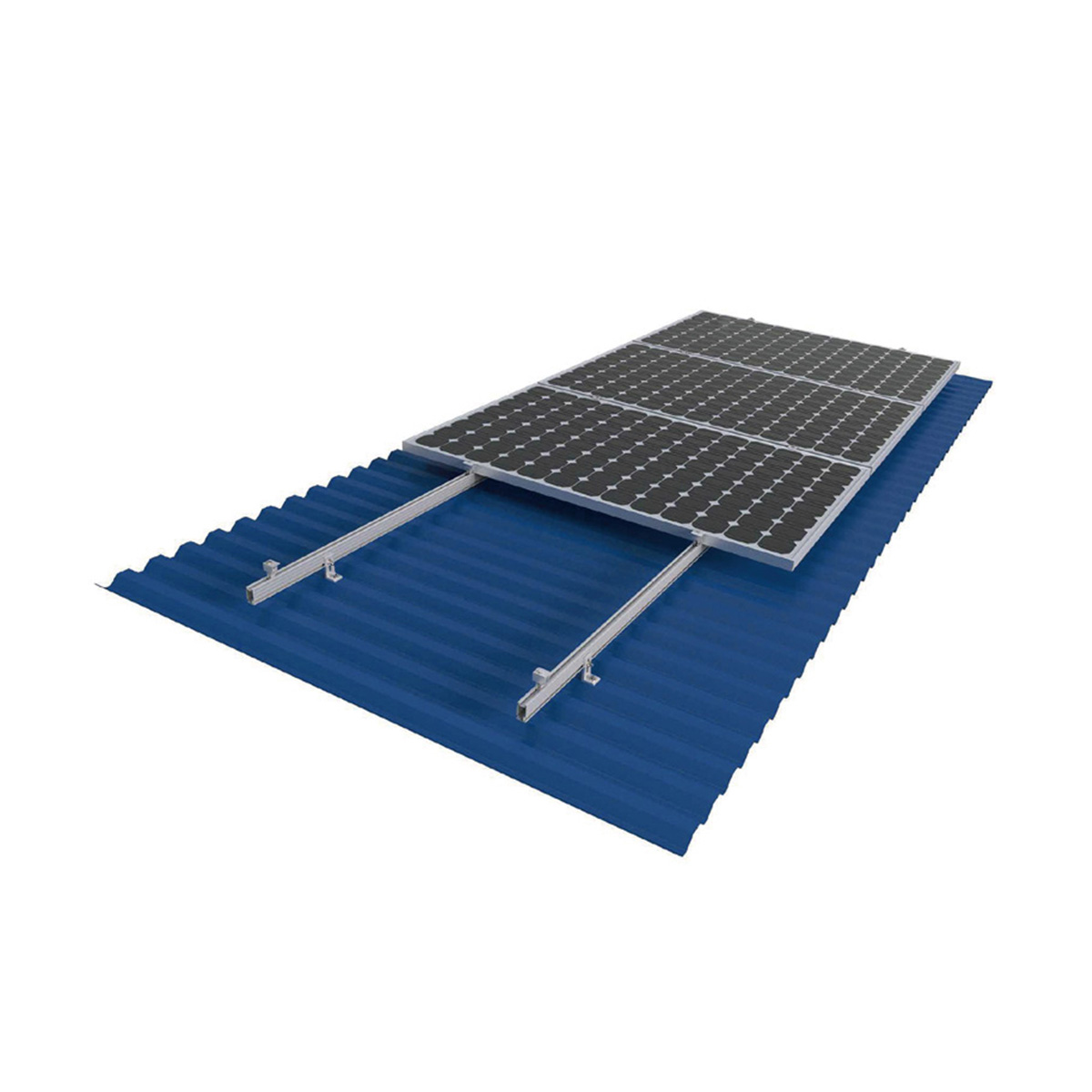

Mounting Rackets
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
