SAIL SOLAR is a professional lithium battery manufacturer, with rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.
Brand Name :
SAIL SOLARType :
LiFePo4Rated Voltage :
48VBattery Capacity :
9.6kWhNumber of Cycles :
>6000 cycles @0.2C 80%DoDEfficiency of Charge :
100% @0.2CEfficiency of Discharge :
96~99% @1CCommunication :
RS485/RS232/CANColor&OEM :
Black or customizedWarranty :
10 years
Battery cells
SAIL SOLAR mainly uses CATL battery cells to produce lithium battery, LiFePo4 battery cells type(LFP), normal voltage can be 48V the capacity can be 9600Wh. Usable capacity 7680Wh at 80% DOD. SAIL SOLAR offer 10 Years design life and warranty. And the recommend charging/discharging current 25A,the max is 50A at 1C. And the BMS power consumption<2W(work),and<100mW(sleep).There are different port of communication RS-485/RS-232 CAN are optional. The product warranty is 10years. This type LFP battery max can parallel 16pcs.
>Substantial Safety
>Long Service Life
>High Energy Density
>Intelligent Temperature Control
>Intelligent Management
Details

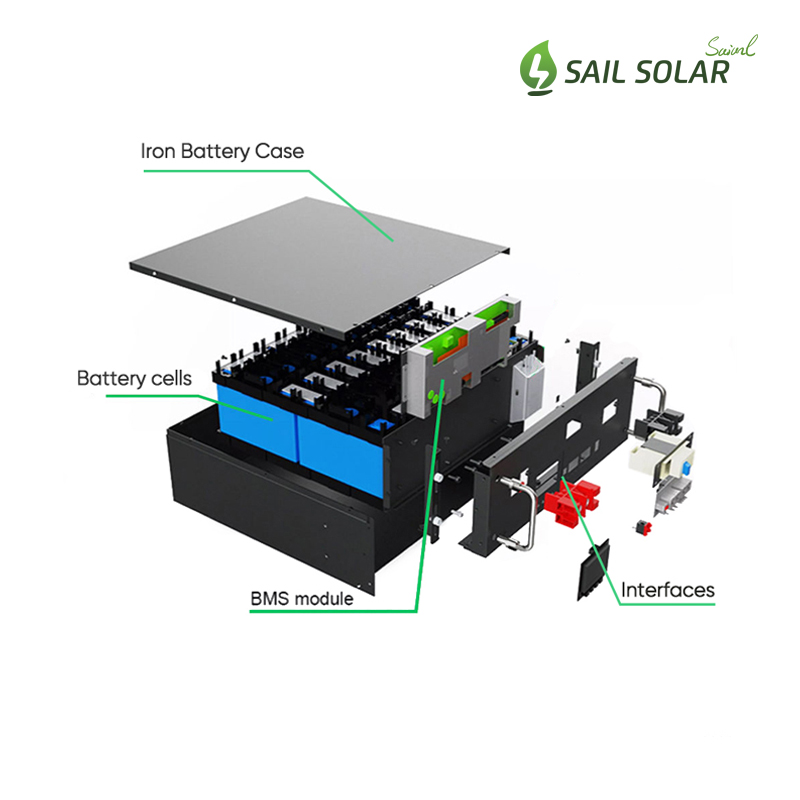

For a lithium battery module, it mainly include iron battery case, lithium battery cells, BMS module, Various interfaces and switches etc.
>Iron battery case is used for protect lithium battery cells.
>Lithium battery cells is core, capacity of the whole battery is improved through the series and parallel connection of battery cells.
>BMS stands for battery management system, it is an essential component of a battery system, including rack lithium batteries, and plays a crucial role in monitoring and controlling the battery's operation.
>Various interfaces include photovoltaic terminal positive and negative interface, communication interface, parallel interface, etc.
Features
> Easy to install and use, just plug and play to minimize the installation time
> Intelligent, each battery has independent BMS system
> Perfect Compatiblity, compatible with most of the available hybrid inverters.
> IP65 rated protection, that it can be installed indoors and outdoors.
> Long life, more than 6000 cycles, with 80% DoD Safe Lithium iron phosphate battery cell
> Safety Cert, UL1642, IEC62619, CE, UN38.3, MSDS.
Compatibility
SAIL SOLAR lithium battery can perfectly match most of the mainstream inverters on the market, Such as Growatt, Solis, Deye Goodwe etc. In theory, lithium battery can be matched with any inverter, if you have your own brand inverter, please send us your inverter communication protocol, our technical team can provide you with adaptation services.
