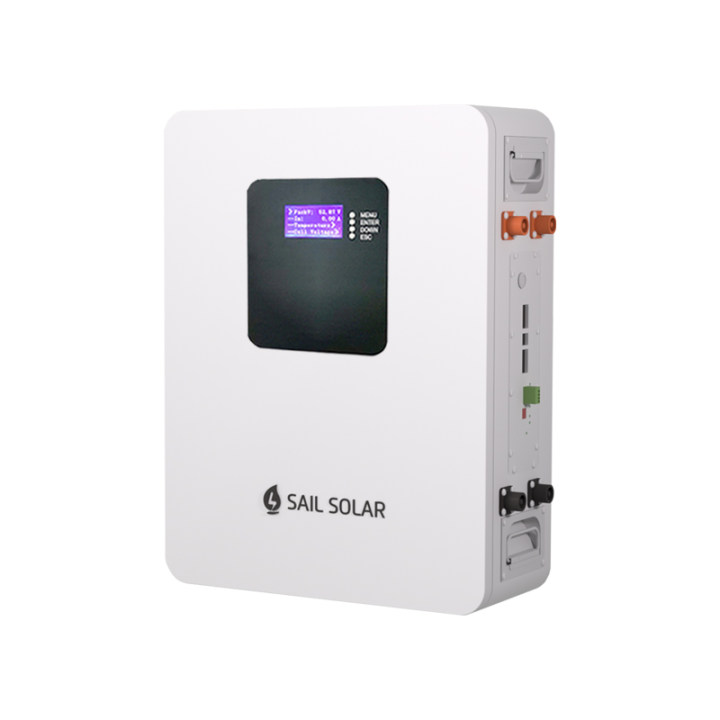

SAIL SOALR Wall-mounted 48V&51.2V 50ah 100ah 150ah 200ah Powerwall Lithium Battery

SAIL SOLAR is a professional lithium battery manufacturer, with rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.

  • Brand Name :

    SAIL SOLAR
  • Type :

    LiFePo4(LFP)
  • Normal Voltage :

    48V or 51.2V
  • Capacity :

    2.5kwh, 5kwh, 10kwh, or 15kwh
  • Number of Cycles :

    >6000 cycles @0.2C 80%DOD
  • Months Self Discharge :

    <3%
  • Efficiency of Charge :

    100% @0.2C
  • Efficiency of Discharge :

    96~99% @1C
  • Communication :

    RS485/CAN
  • Warranty :

    10 years
  • Color&OEM :

    White,or customized. Support OEM

SAIL SOALR 48V&51.2V 100ah 200ah wall-mounted lithium battery produce by CATL cells

CATL battery cells

Battery cells

CATL is top one lithium battery cells brand all over the world. CATL high-performance LFP batteries that are safe, reliable and long-life. High energy efficiency of CATL's battery systems, "renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.  It enables 15-20 years life design, up to 6000+ cycle life. SAIL SOLAR mainly use CATL battery cells to produce lithium battery.

>Substantial Safety

>Long Service Life

>High Energy Density

>Intelligent Temperature Control

>Intelligent Management





battery details

Details

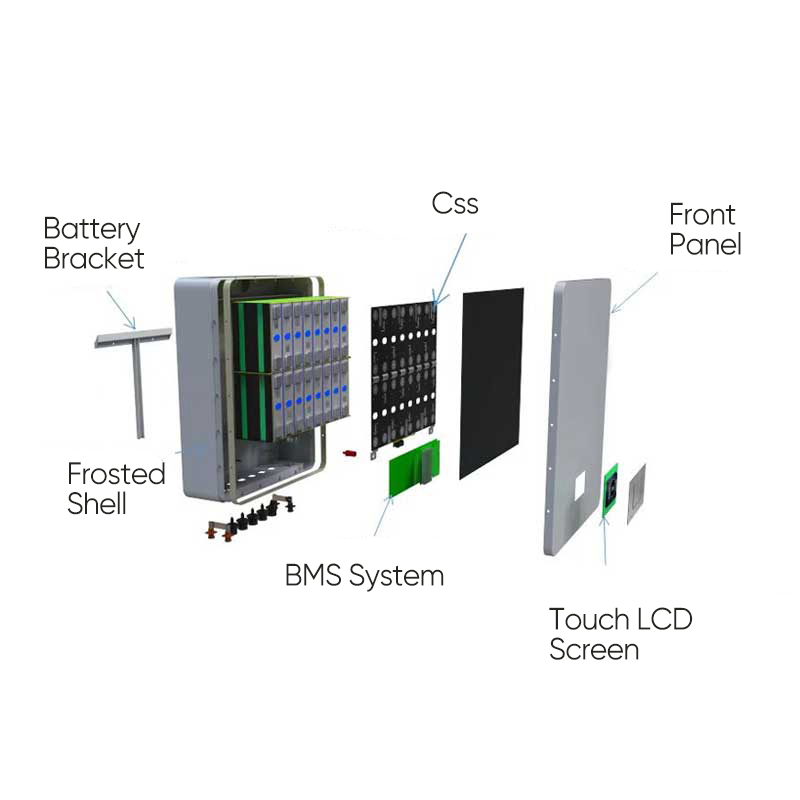

For a wall-mounted lithium battery module, it mainly include I battery bracket, CCS, BMS system, front panel, touch LCD screen and battery cells.

>Battery bracket: Wall mounted, Easy to install, keep battery balance. bear over 200kgs

>CCS: Integrated acquisition line and temperature sensing line, simplifying the process

> BMS system: Potente smart BMS to support 16pcs parallel at max, prevent battery over charge and discharge. prolong battery life and monitor battery status

> Front panel :protect internal structure for quick disassembly

> LCD screen: see battery status free to choose BMS protocols to meet different brands inverter



Features

Features

> Easy to install and use, just plug and play to minimize the installation time

> Intelligent, each battery with independent BMS system

> Perfect Compatiblity, compatible with most of the available Hybrid inverters.

> IP65 rated protection, that it can be Installed Indoors and Outdoors.

> Long life and safety, more than 6000 cycles, with 80% DoD Safe Lithium iron phosphate battery cell

> Safety Cert, UL1642, IEC62619, CE, UN38.3, MSDS.





Compatibility

Compatibility

SAIL SOLAR lithium battery can perfectly match mainstream inverters on the market, Such as Growatt, Solis, Deye Goodwe etc. In theory, lithium battery can be matched with any inverter, if you have your own brand inverter, please send us your inverter communication protocol, our technical team can provide you with adaptation services
