The SAIL SOLAR Solis 125kW/241kWh all in one outdoor energy storage system provides a highly integrated photovoltaic-storage-microgrid energy storage solution for industrial and commercial applications and industrial parks. It offers high integration, high security, and flexible grid/off-grid operation, providing an efficient solution for peak-valley arbitrage, backup power, and green energy consumption. Equipped with a high-efficiency 125kW hybrid inverter and a 241kWh LiFePO4 battery pack, it ensures stable, long-term backup and peak-shaving performance. Specifical design for outdoor environments, the system features intelligent EMS control, multiple protection functions, modular installation, and seamless integration with solar photovoltaic systems.
Brand Name :
SAIL SOLARProduct Model :
125KW/241KWH BESSBattery Type :
Lifepo4Warranty :
10 yearsInverter Type :
Solis 125kw Hybrid InverterSize: :
527×894×294mmBattery Voltage :
512VProtection degree :
IP65Output Voltage (V) :
220v/380v;230v/400vMax Input DC Voltage (V) :
1000VOutput Frequency :
50hz/60hz
The SAIL SOLAR Solis 125kW/241kWh All-in-One Outdoor Energy Storage System is a high-performance integrated power solution designed for commercial facilities, industrial operations, and micro-grid applications. Equipped with a Solis 125kW hybrid inverter and a 241kWh LiFePO4 lithium battery pack, this system delivers long-duration backup power, peak shaving, load shifting, and seamless solar integration.
Core Advantages
-High Efficiency and Benefits: Off-peak electricity storage and peak power release, continuous power supply, reducing costs and increasing efficiency.
-Intelligent Management: Customizable EMS strategies (PV priority/Storage priority/Diesel generator linkage), remote monitoring and maintenance.
-Safe and Reliable: Multi-level protection + thermal runaway early warning + fire alarm linkage, adaptable to harsh environments from -20 to 55℃.
-Flexible Expansion: Supports parallel connection of multiple cabinets, suitable for industrial and commercial applications, microgrids, charging stations, and power supply in remote areas.

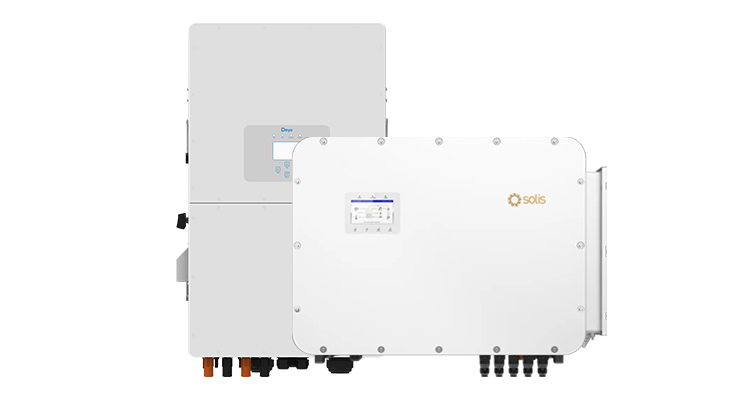

✔ 125kW High-Efficiency Hybrid Inverter
Using Solis high voltage hybrid inverter 125kw, supports solar, grid and battery integration with fast response and stable output.
✔ 241kWh Long-Life LiFePO4 Battery
Using 15pcs grade A 51.2v 314ah (16kwh) high voltage lithium battery modules in series, delivers excellent safety, over 8000 cycles, and long-duration backup for commercial and industrial use.

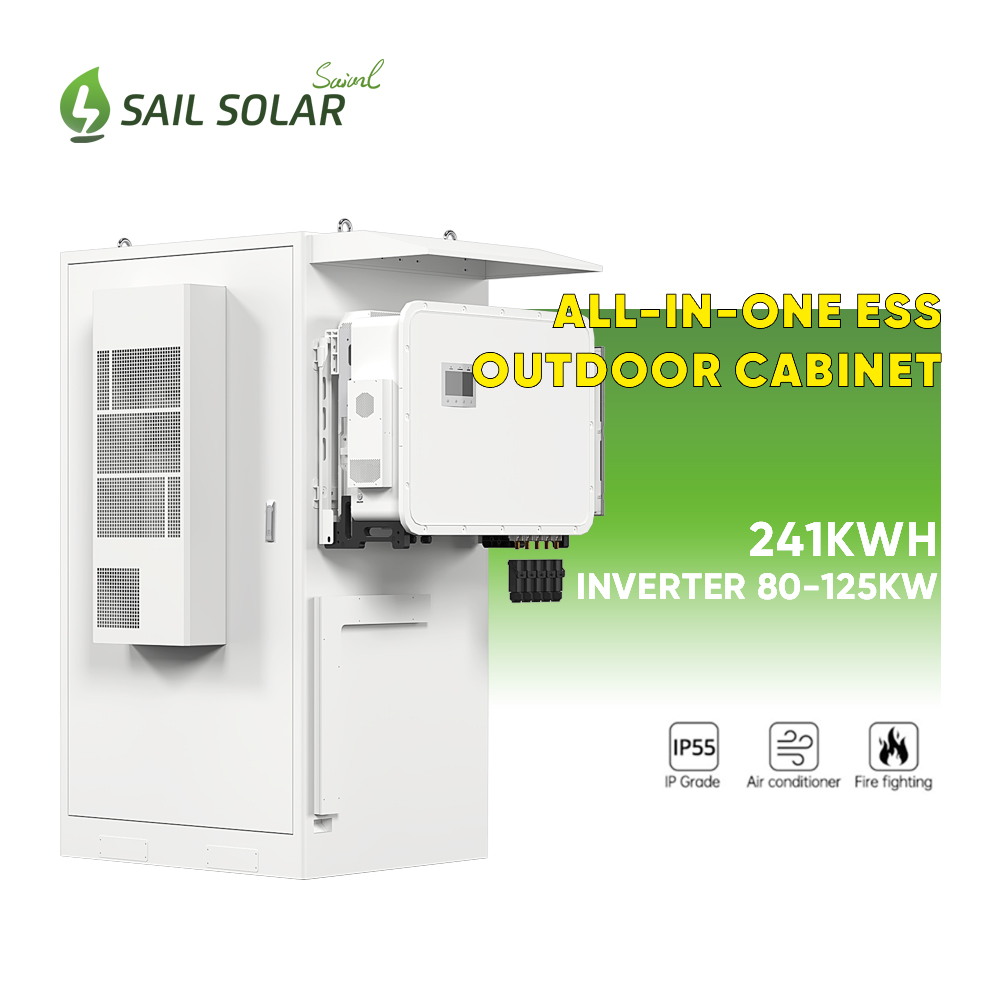

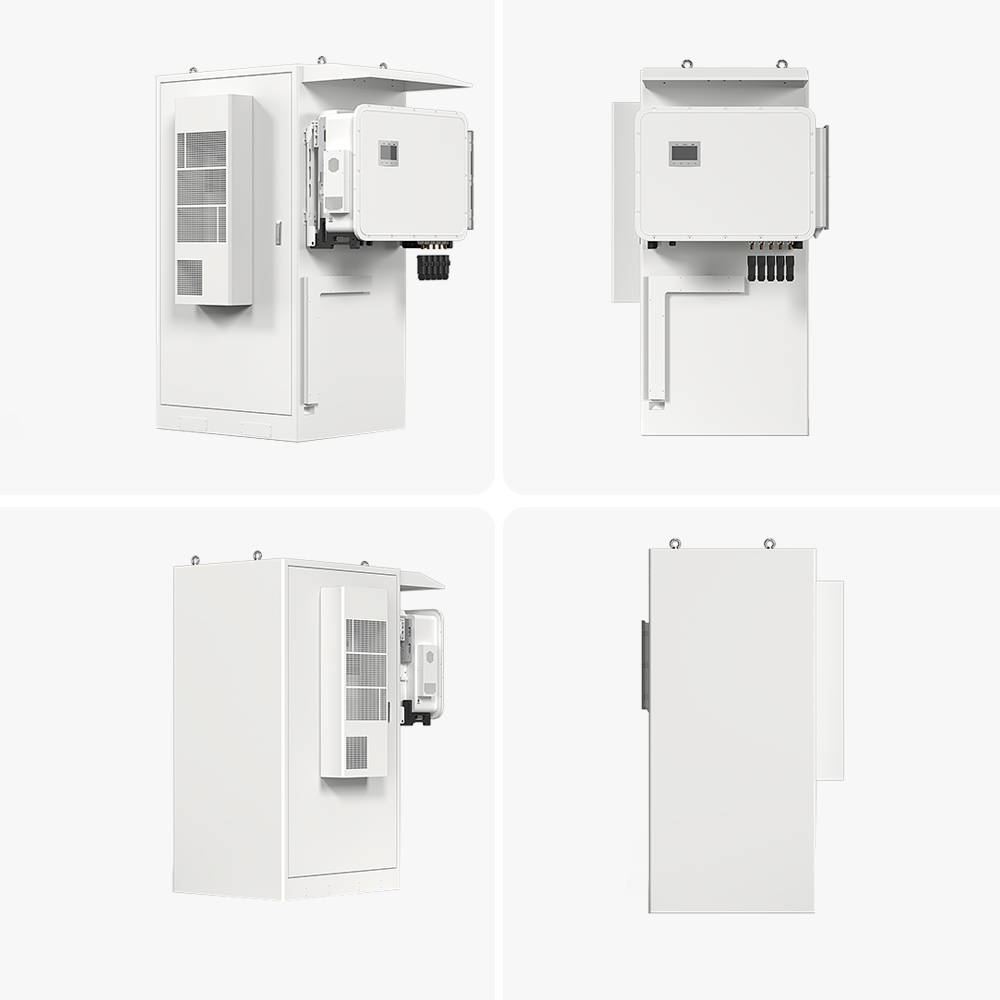

✔ All-in-One Outdoor Cabinet
Using IP55 outdoor cabinet, integrated inverter, battery, BMS, EMS and cooling system in a weather-resistant outdoor enclosure.
✔ Smart BMS + EMS Energy Management
Real-time monitoring, peak shaving, load shifting, and optimized energy control for cost reduction.
✔ Plug-and-Play Installation
Modular structure enables quick deployment, simple wiring, and easy system expansion.

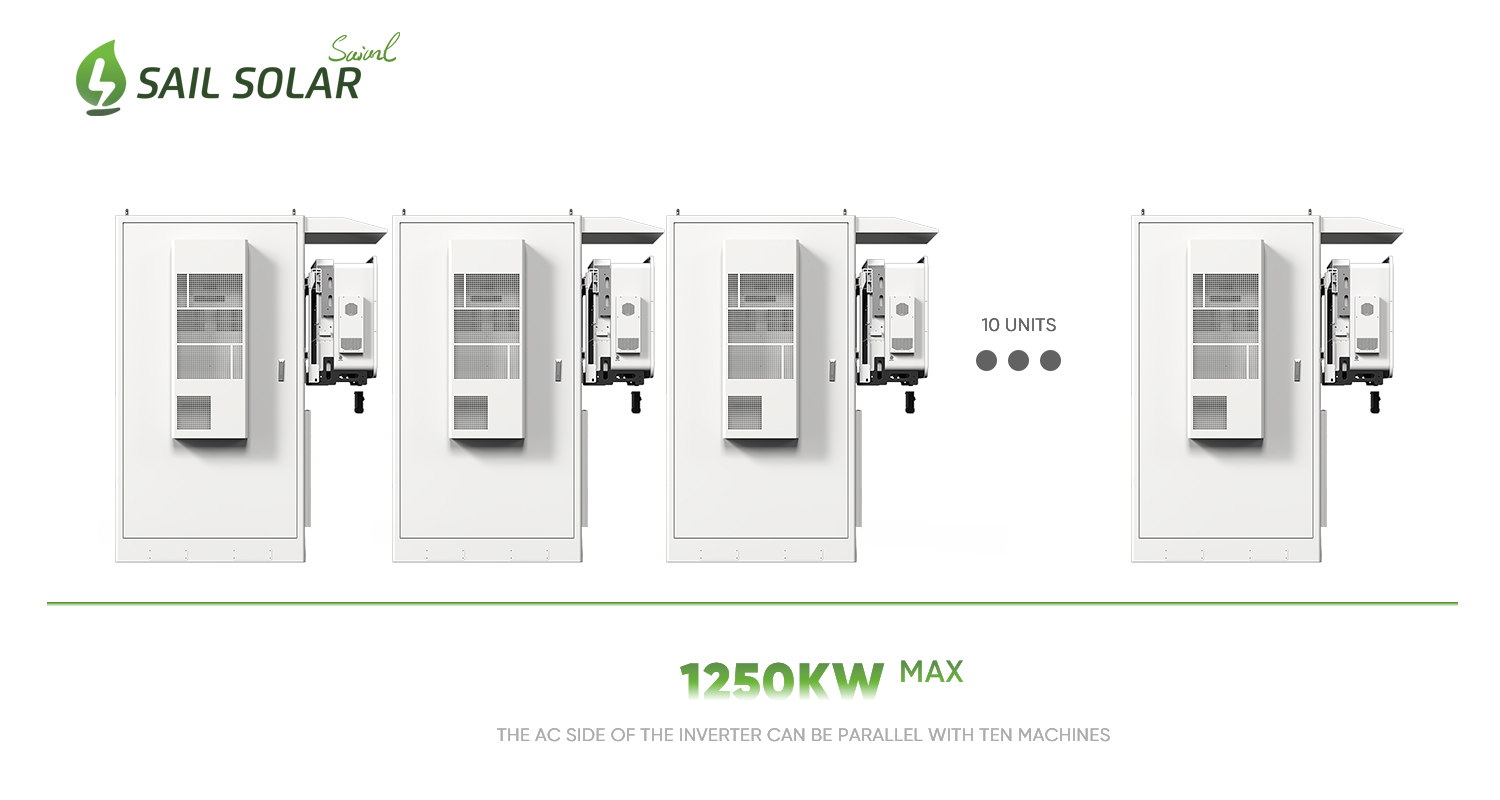

✔ Support 10 units in parallel
The system supports up to 10 units in parallel connection, with a maximum power capacity of 1250kW, making it the preferred energy storage solution for industrial, commercial, and park applications.

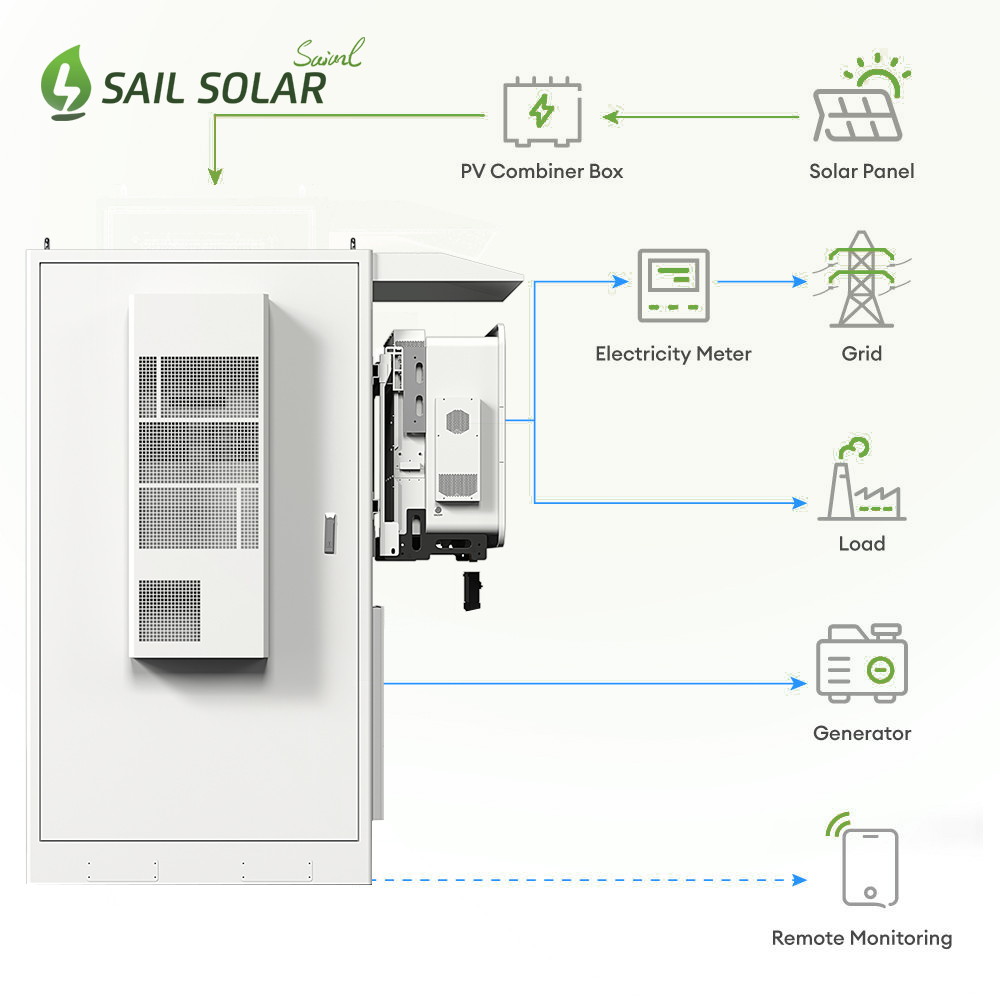

The 125kW/241kWh Outdoor Energy Storage System (BESS) integrates seamlessly with photovoltaic (PV) arrays, the utility grid, and AC loads to deliver a comprehensive hybrid power solution. PV arrays generate direct current (DC) power, which is fed into the hybrid inverter housed within the outdoor cabinet. The inverter intelligently manages energy distribution: either charging the 241kWh LiFePO4 battery bank or supplying alternating current (AC) power directly to connected loads. During peak demand periods or grid outages, the system automatically discharges to sustain critical loads, guaranteeing uninterrupted operation. When PV generation is insufficient, the utility grid provides supplementary power, while the integrated Smart Energy Management System (EMS) optimizes real-time energy flow to maximize operational efficiency, reduce energy costs, and ensure robust backup performance.
