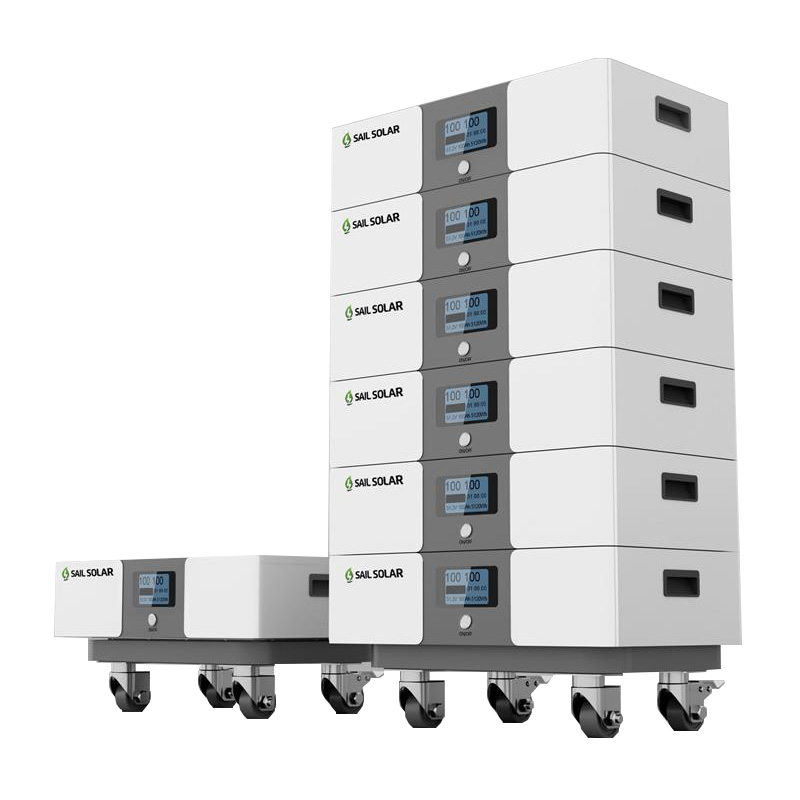

SAIL SOLAR series stackable energy storage lithium batteries use long-life and environmentally friendly lithium iron phosphate batteries. Configure a high-performance BMS to effectively manage the battery cells. The battery capacity can be flexibly combined and expanded, making industrial/commercial energy storage systems more convenient to use.
Brand Name :
SAIL SOLARType :
LiFePo4Rated Voltage :
153.6V/204.8 V/256V/307.2V/358.4V/409.6V, etcBattery Capacity :
15.36kWH/20.48kWH /25.6kWH/30.72kWH/35.84kWH/40.96, etcNumber of Cycles :
>6000 Cycles @0.2C 80%DoDEfficiency of Charge :
100% @0.2CEfficiency of Discharge :
96~99% @1CCommunication :
RS485/RS232/CANColor&OEM :
White or customizedWarranty :
10 Years
Details
SAIL SOALR lithium battery mainly includes iron battery case, lithium battery cells, BMS module, various interfaces and switches etc.
>Iron battery case is used for protect lithium battery cells.
>Lithium battery cells is core, capacity of the whole battery is improved through the series and parallel connection of battery cells.
>BMS stands for battery management system, it is an essential component of a battery system and plays a crucial role in monitoring and controlling the battery's operation.
>Various interfaces include photovoltaic terminal positive and negative interface, communication interface, parallel interface, etc.
Battery Parameter
| Model | Z-51100-HV | Z-51200-HV | Z-51300-HV | Z-51400-HV | Z-51500-HV | Z-51600-HV | |
| Electrical Parameters (25°C) | Rated Voltage | 51.2V | 102.4V | 153.6V | 204.8V | 256V | 307.2V |
| Rated Capacity | 100Ah | 100Ah | 100Ah | 100Ah | 100Ah | 100Ah | |
| Energy | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | 30.72kwh | |
| Months Self Discharge | <3% | <3% | <3% | <3% | <3% | <3% | |
| Charge Efficiency | 99.5% @ 25°C | 99.5% @ 25°C | 99.5% @ 25°C | 99.5% @ 25°C | 99.5% @ 25°C | 99.5% @ 25°C | |
| Discharge Efficiency | 96%-99% @ 1C | 96%-99% @ 1C | 96%-99% @ 1C | 96%-99% @ 1C | 96%-99% @ 1C | 96%-99% @ 1C | |
| Terminal Diameter | M8 | M8 | M8 | M8 | M8 | M8 | |
| Cycle Life | 6000 Cycles 0.5C 100% DOD | ||||||
| Norminal Operating Temperature | 25°C±3°C | ||||||
Certification
