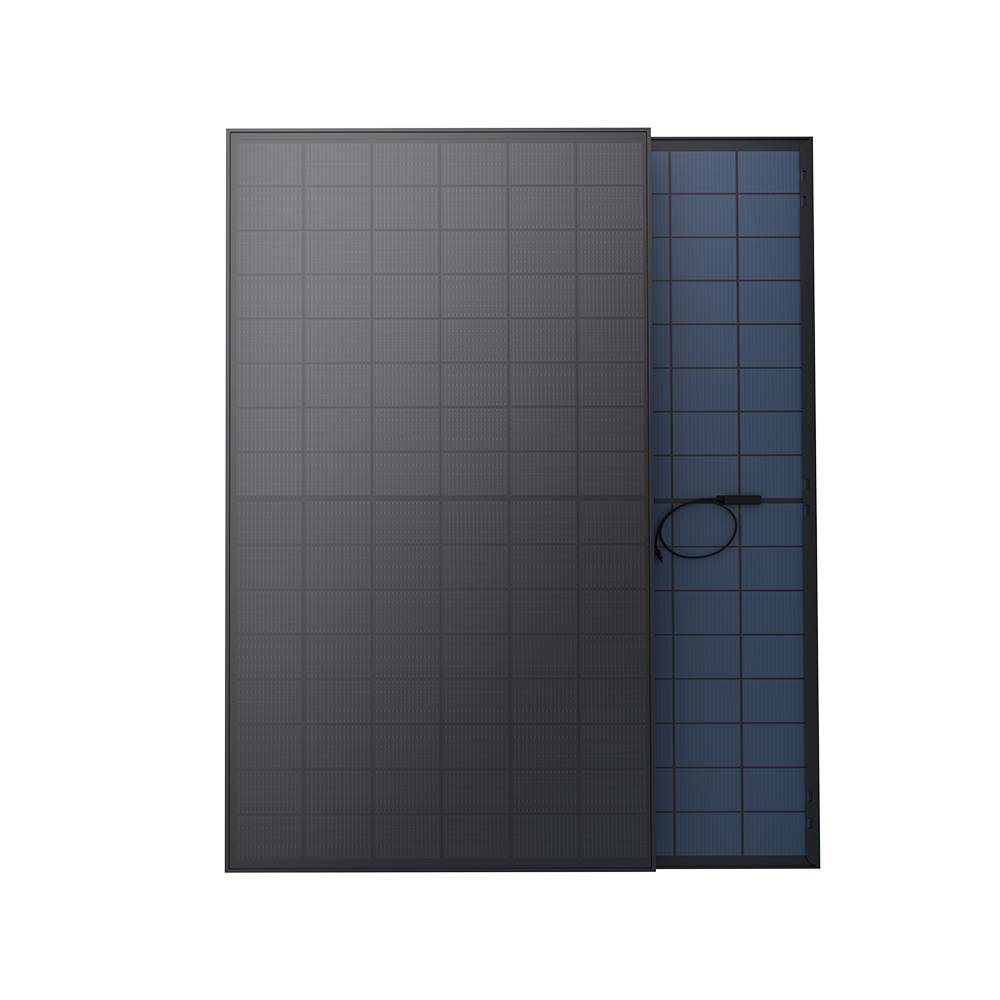

A high-efficiency photovoltaic module featuring 96 monocrystalline cells in a sleek all-black aesthetic. This glass-on-glass construction enables dual-sided power generation, capturing direct sunlight on the front surface while harvesting reflected light through the rear. The tempered glass layers enhance durability, weather resistance, and PID-free performance. Ideal for both residential and commercial installations requiring premium aesthetics with enhanced energy yield from albedo surfaces.
Brand Name :
SAIL SOLARPower Range :
435W-455WDimensions of Module :
1762 x 1134 x 30mmWeight :
21.0kgGlass :
Class AFrame :
Anodized aluminium alloy(reinforced high-load optionalJunction Box :
Ip68 rated (3 by pass diodes)Cable :
4.0mm2Max. Efficiency :
28.46%Wind/Snow Load :
Front 5400Pa / Rear 2400PaNumber of Cells :
96 cellsBacksheet :
All BlackPacking :
36pcs/pallet; 936pcs/40HQ

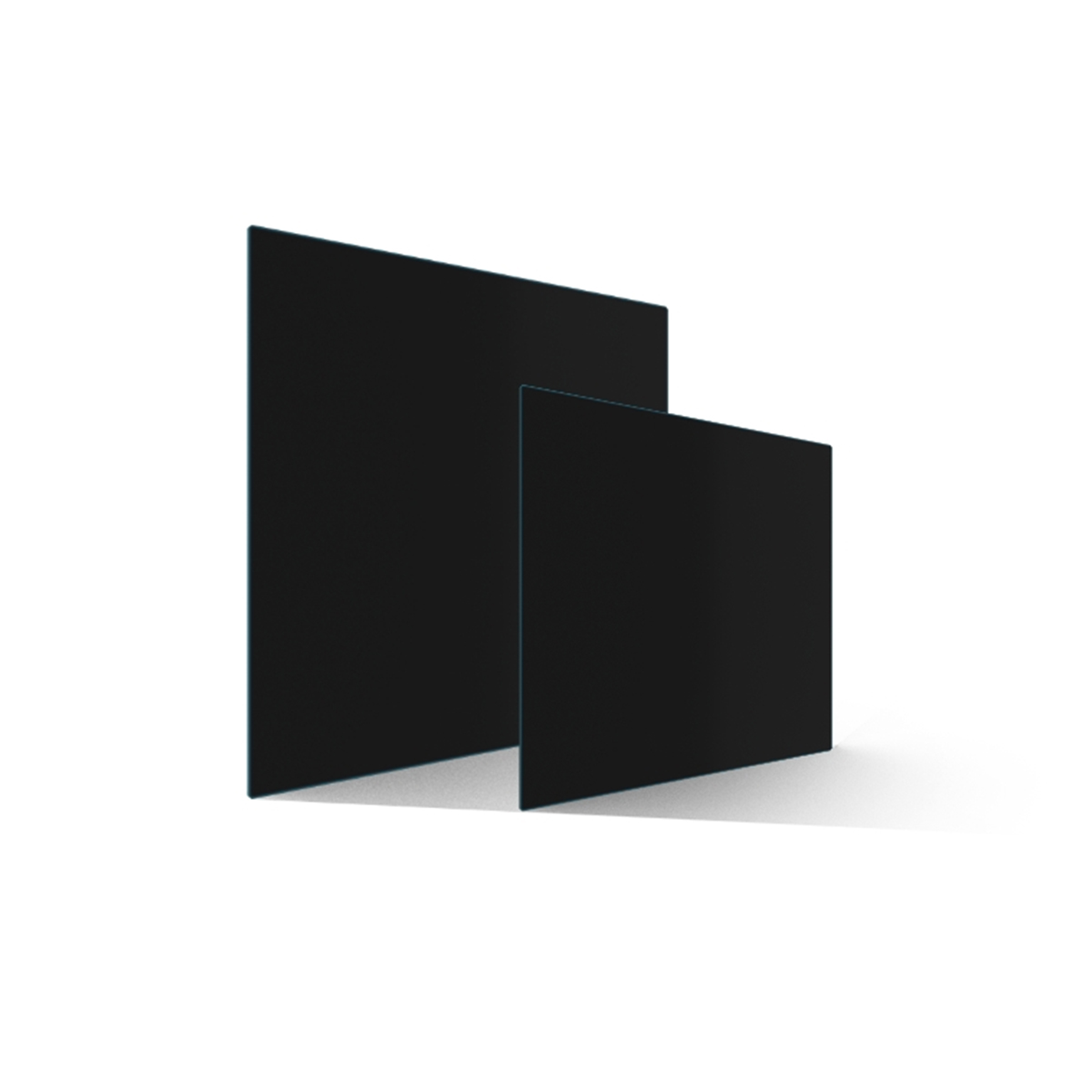

A premium monocrystalline solar cell designed for high-performance applications, featuring a rectangular format (182×210mm) and a sleek all-black aesthetic. Utilizing advanced passivation and cutting-edge cell technology, it maximizes light absorption while minimizing reflection for enhanced energy conversion efficiency. The uniform black surface, free of visible grid lines, ensures seamless integration into modern architectural designs and residential systems. Engineered with durable, high-purity silicon and anti-reflective coatings, it delivers reliable power output even in low-light conditions. Ideal for compact arrays, custom solar modules, and projects prioritizing aesthetics without compromising efficiency.
A premium monocrystalline solar cell designed for high-performance applications, featuring a rectangular format (182×210mm) and a sleek all-black aesthetic. Utilizing advanced passivation and cutting-edge cell technology, it maximizes light absorption while minimizing reflection for enhanced energy conversion efficiency. The uniform black surface, free of visible grid lines, ensures seamless integration into modern architectural designs and residential systems. Engineered with durable, high-purity silicon and anti-reflective coatings, it delivers reliable power output even in low-light conditions. Ideal for compact arrays, custom solar modules, and projects prioritizing aesthetics without compromising efficiency.
Product Datasheet
| Module ID | SAS435N-96G12R | SAS440N-96G12R | SAS445N-96G12R | SAS450N-96G12R |
| Power | 435 | 440 | 445 | 450 |
| Open Circuit Voltage (Voc) | 34.49V | 34.74V | 34.97V | 35.21V |
| short Circuit Current(Isc/A) | 15.84A | 15.90A | 15.96A | 16.02A |
| Voltage at Maximum power (Vmpp) | 29.43V | 29.65V | 29.87V | 30.08V |
| Current Maximum Power (Impp) | 14.78A | 14.84A | 14.90A | 14.96A |
| Module Efficiency (%) | 21.77% | 22.02% | 22.27% | 22.52% |
| Power Output Tolerance (W) | 0~+5W | |||
| Temperature Coefficient of Isc | +0.045%/°C | |||
| Temperature Coefficient of Voc | -0.250%/°C | |||
| Temperature Coefficient of Pmax | -0.290%/°C | |||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOSAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
